Spectrum-Y

Version: Spectrum-Y

Spectrum-Y
Spectrum-Y Plus
Spectrum-Y is
designed for

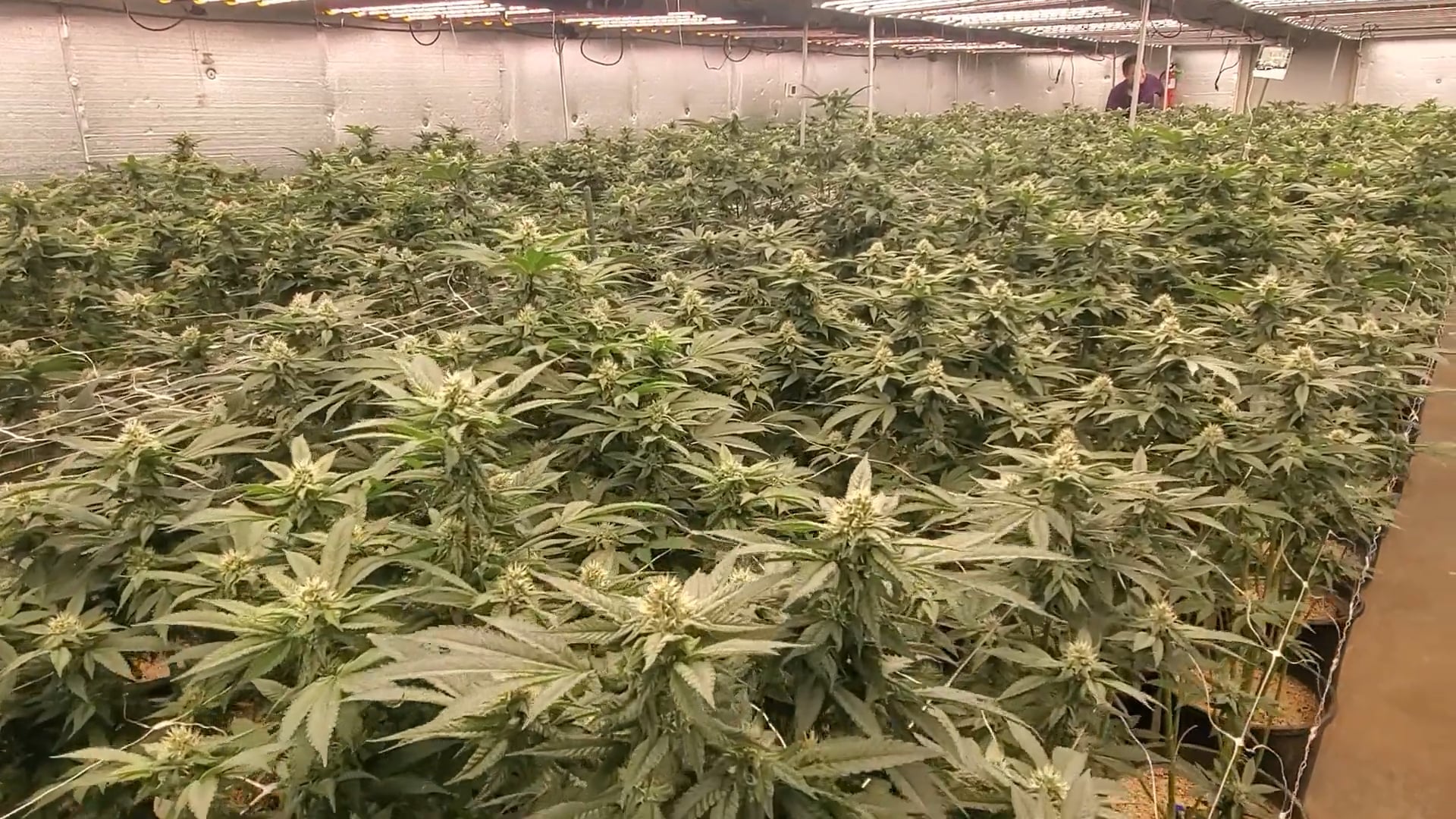

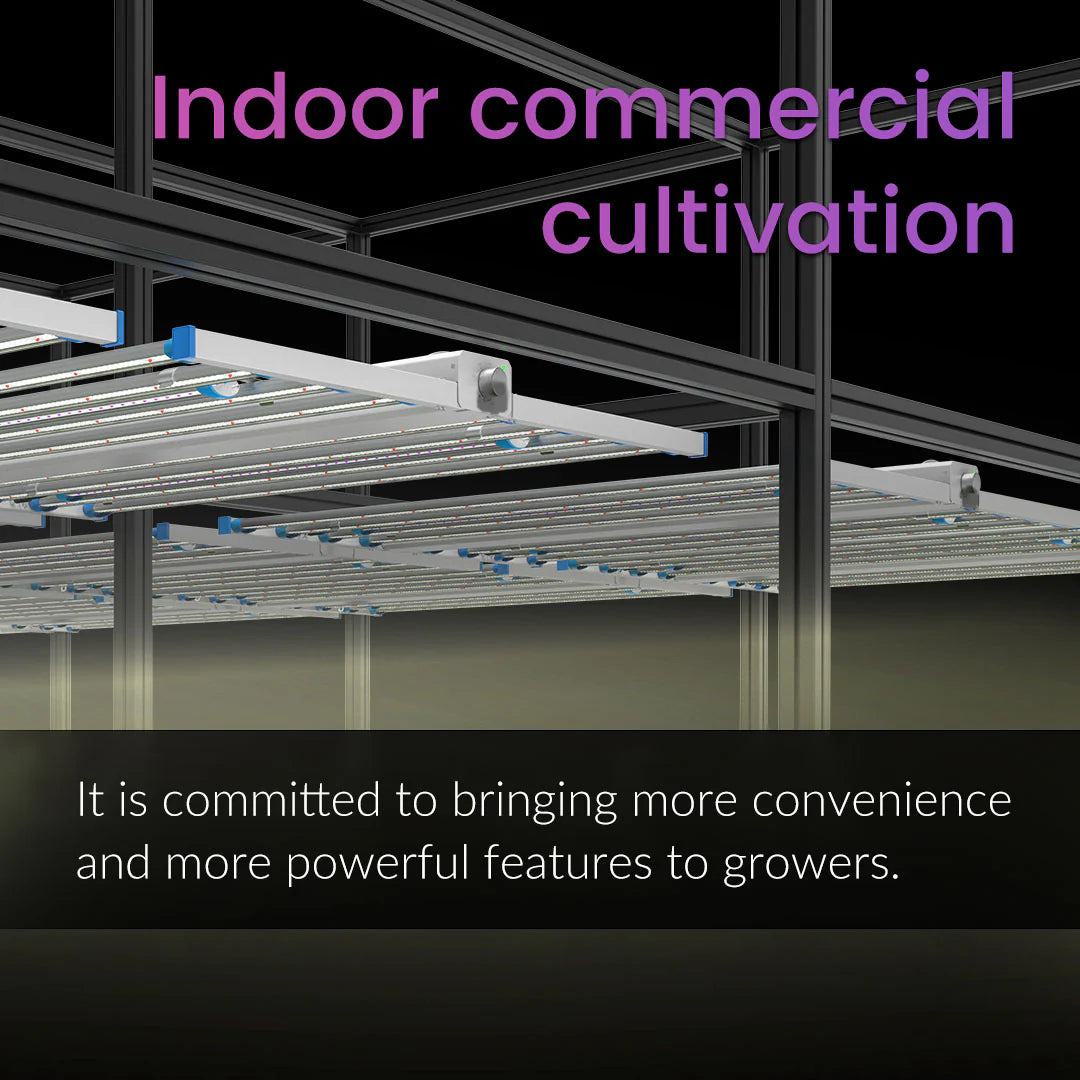

HIGH PPFD CULTIVATION
IN INDOOR FACILITY
Specification

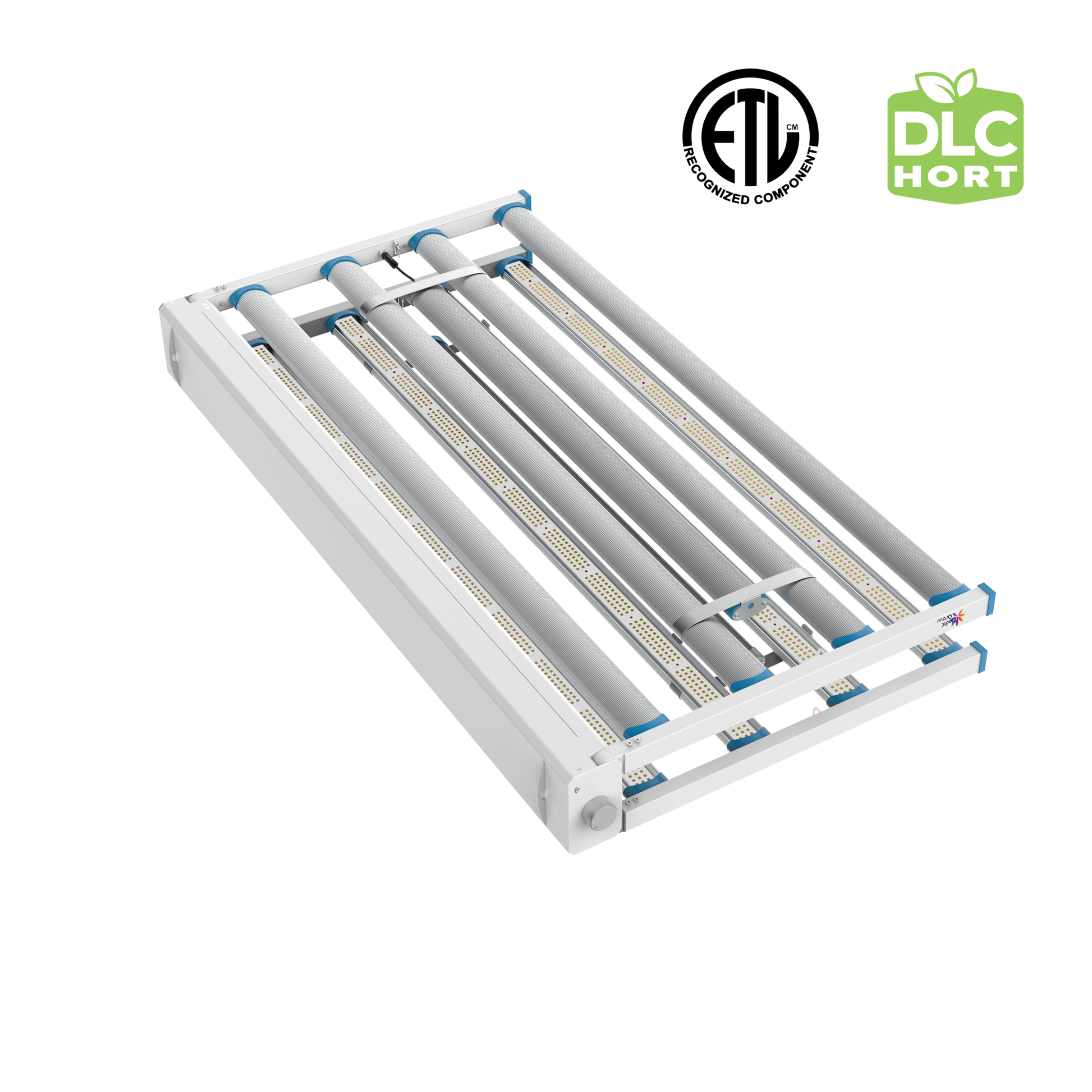

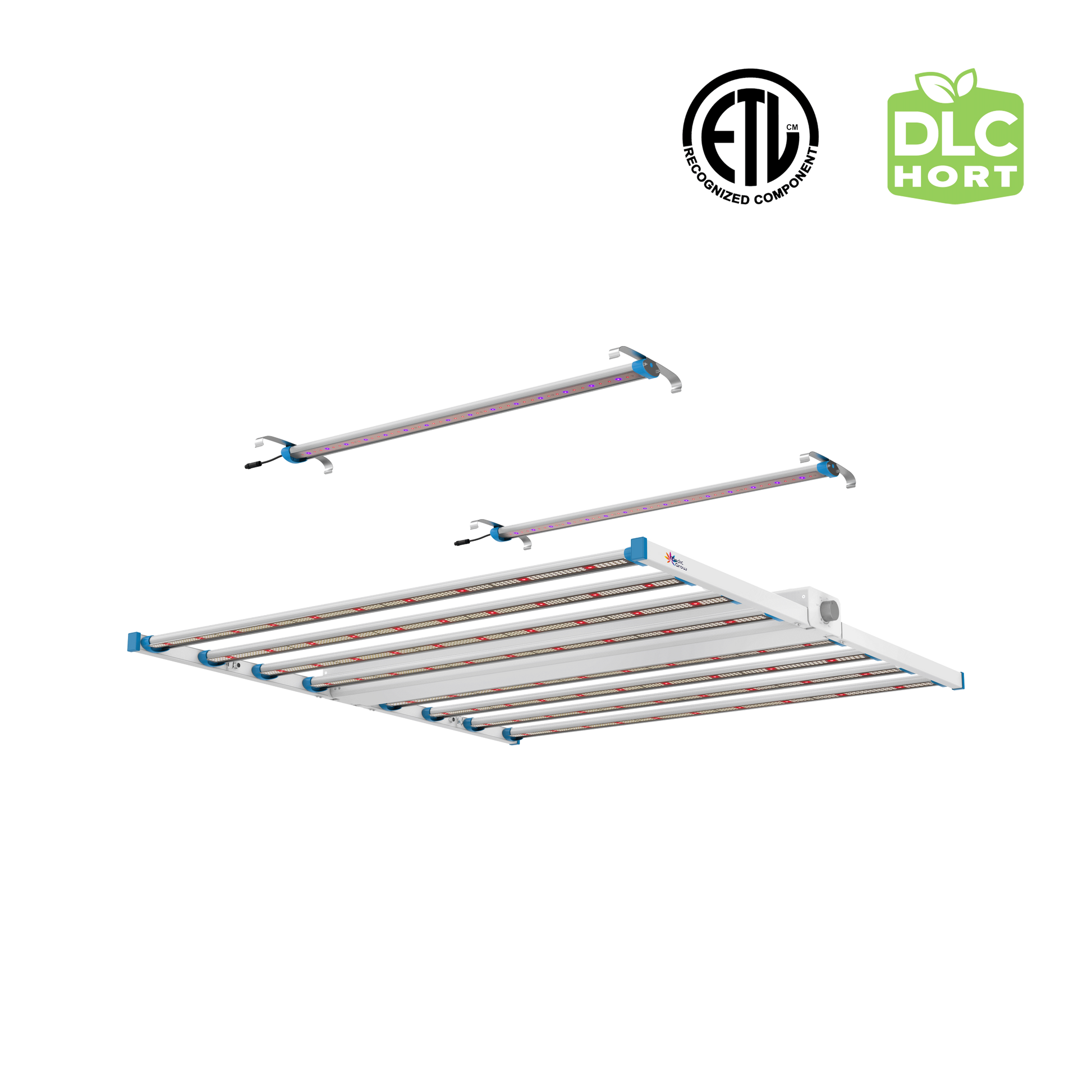

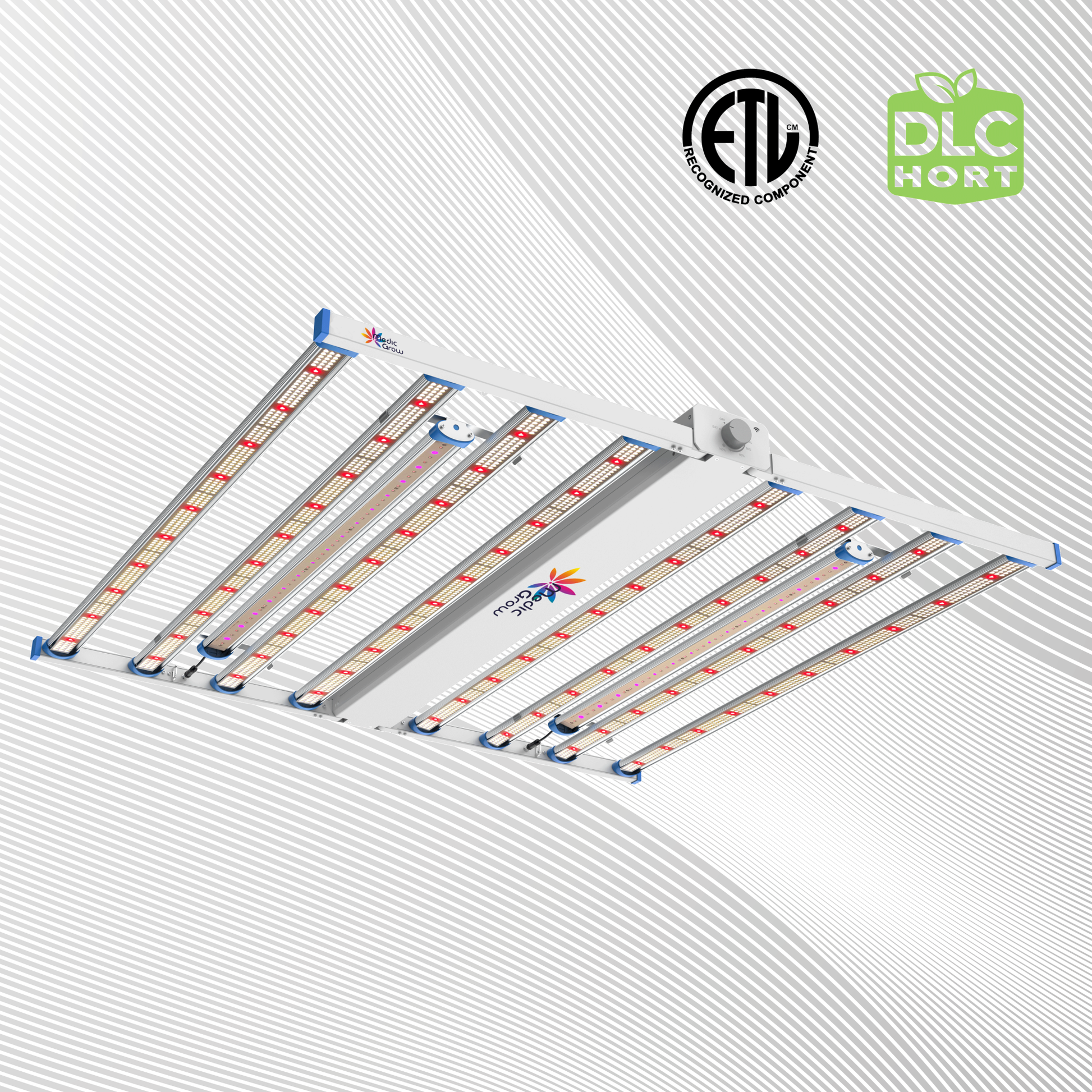

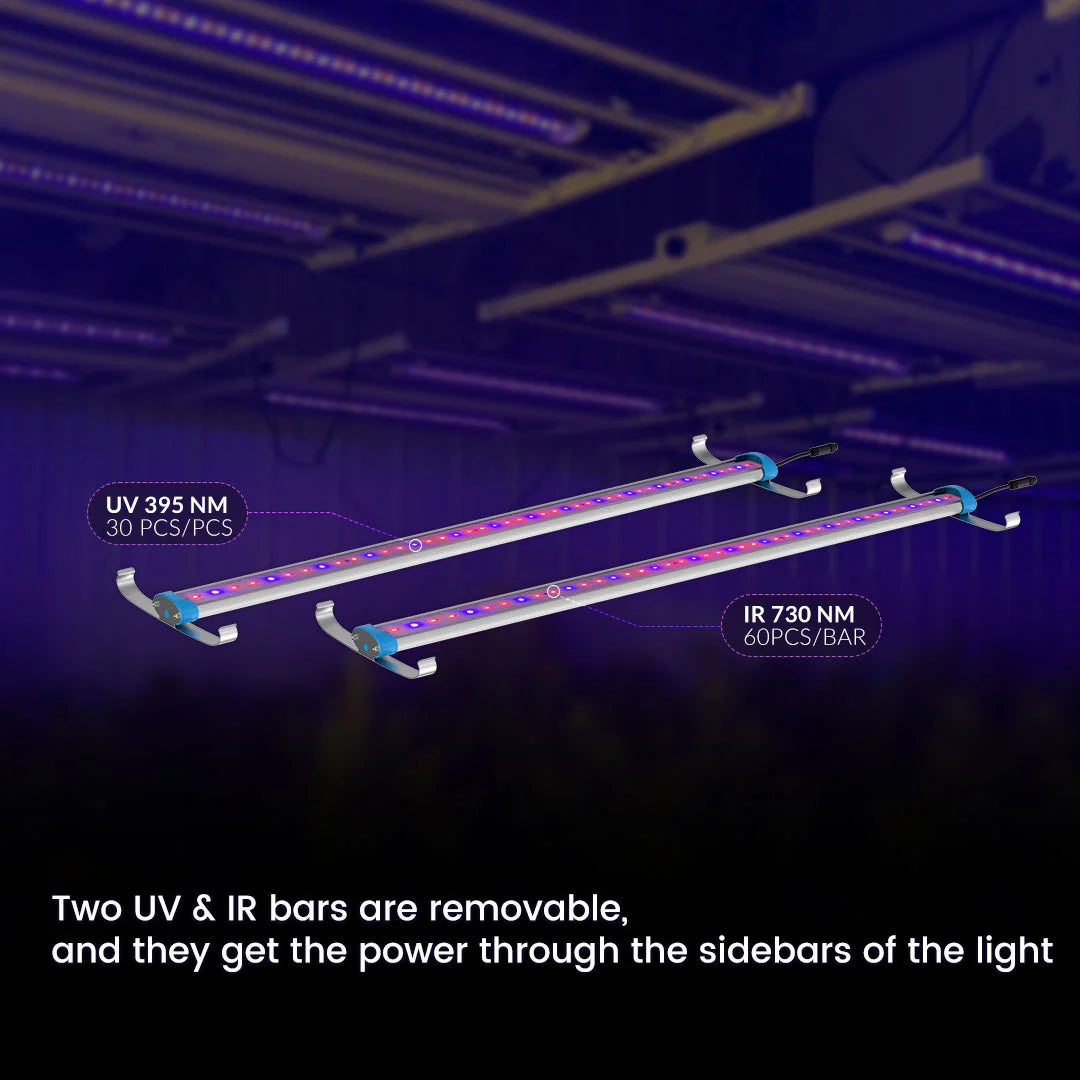

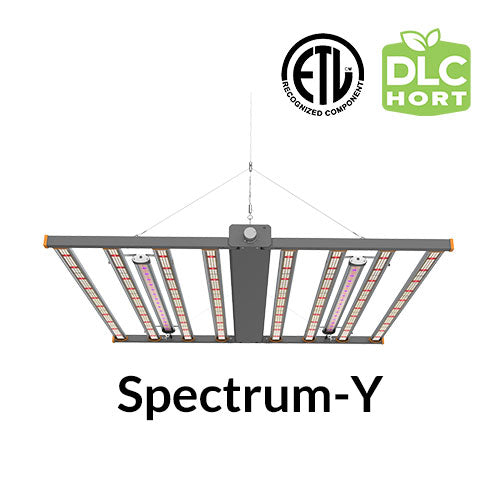

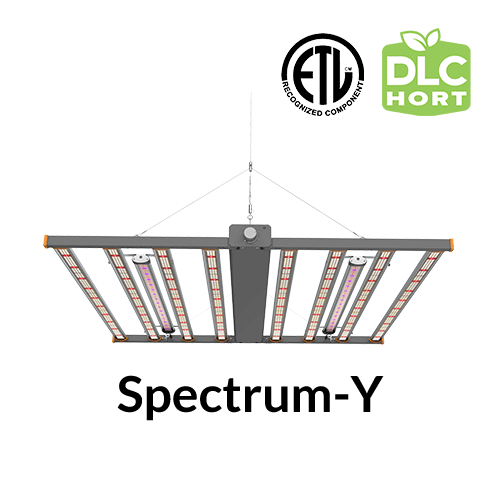

Spectrum-Y is a dimmable, spectrum tunable LED grow light, with two detachable UV+IR bars. The Spectrum-Y light can be controlled wirelessly or via wired connection through the TSC-2 Master Controller, and it supports auto-grouping of up to 200 units, as well as the independant control of UV/ IR add-on.
Specification

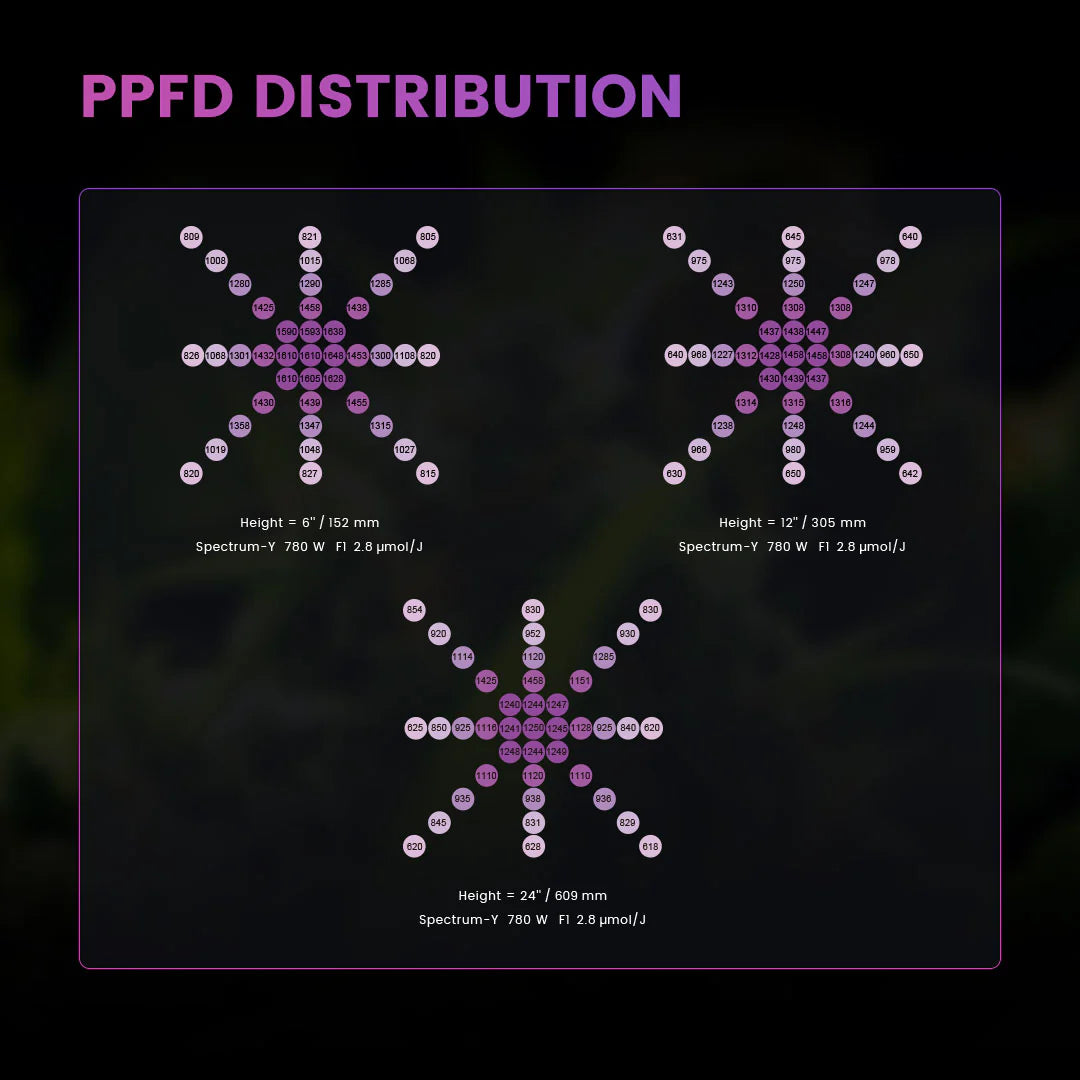

PPF
>2184
μmol/s
Efficacy
>2.8
μmol/J
input Power
880
Watts
Power Factor
≥ 96%
Weight
30.2
Ibs
Dimensions
44.52″L
44.88″W
2.76″H
Mounting Height
>6″(15.2cm)
Above Canopy
Lifetime
L90 >
50,000
hours
Warranty
5
years

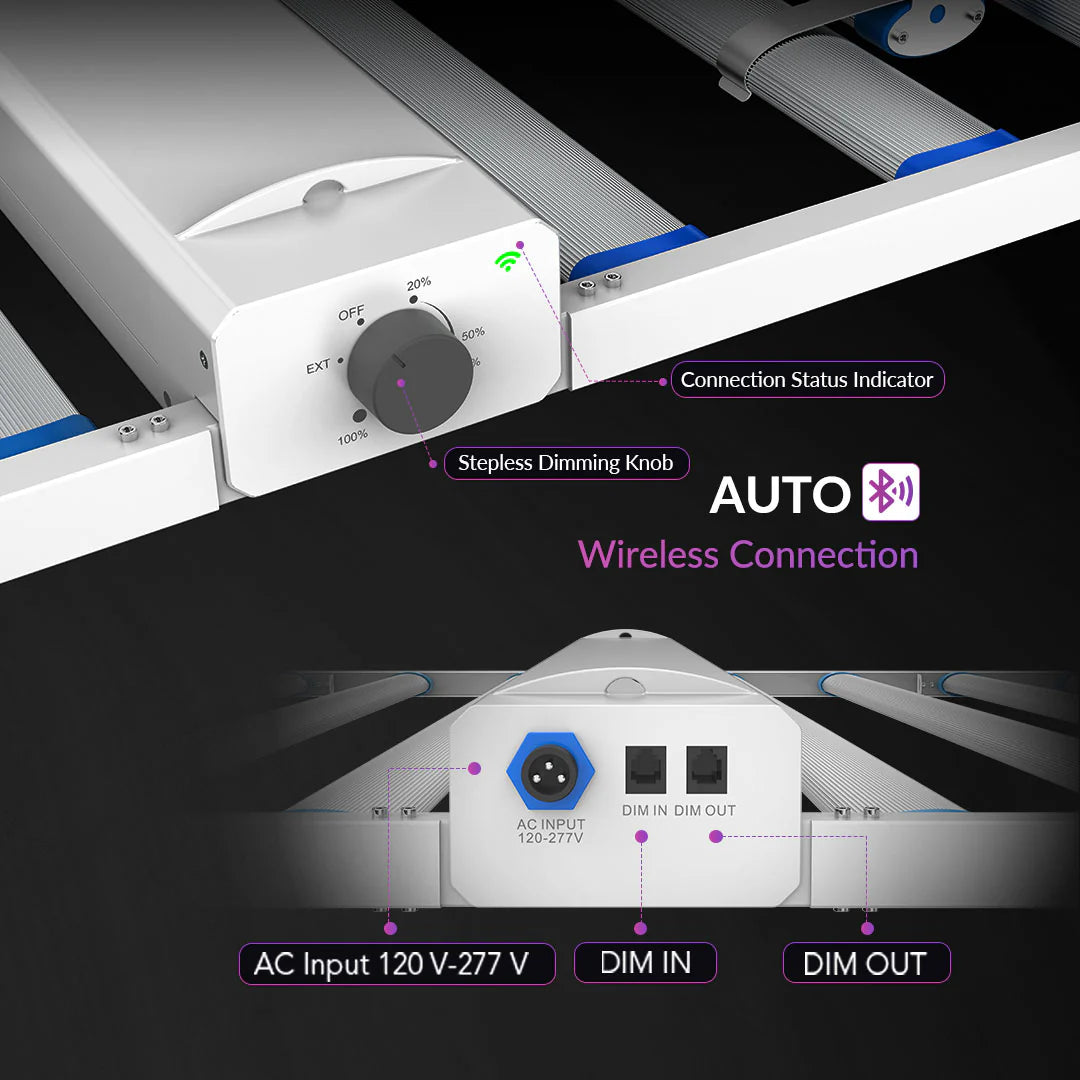

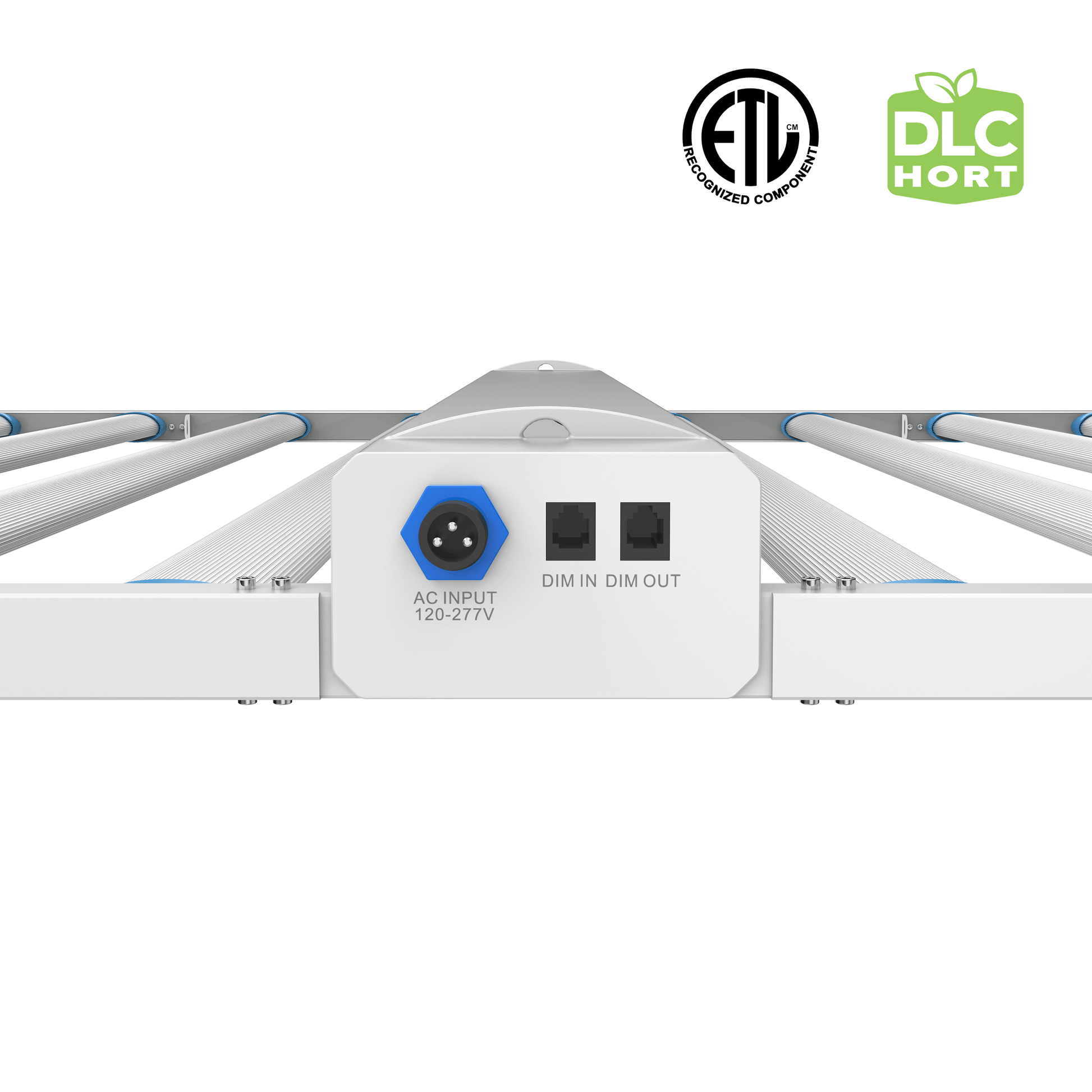

Input Voltage
Autosensing
120-277
Volts.
Amp Draw
7.30 @ 120 Volt
3.70 @ 240 Volt
3.20 @ 277 Volt
BTU
3003
btu/h

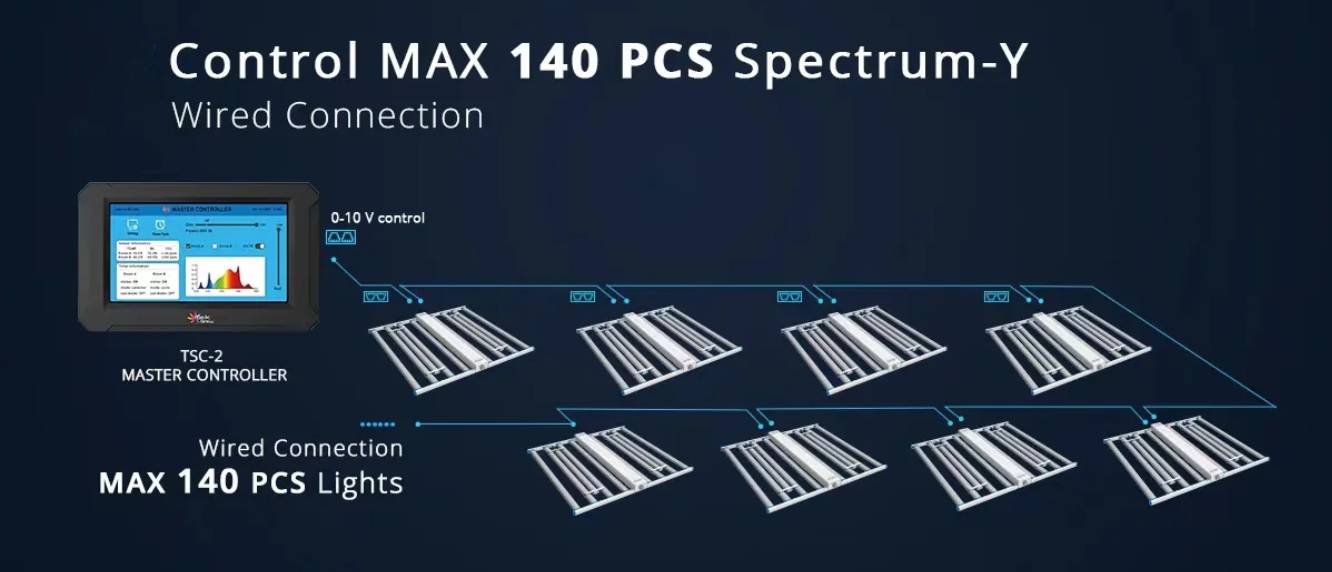

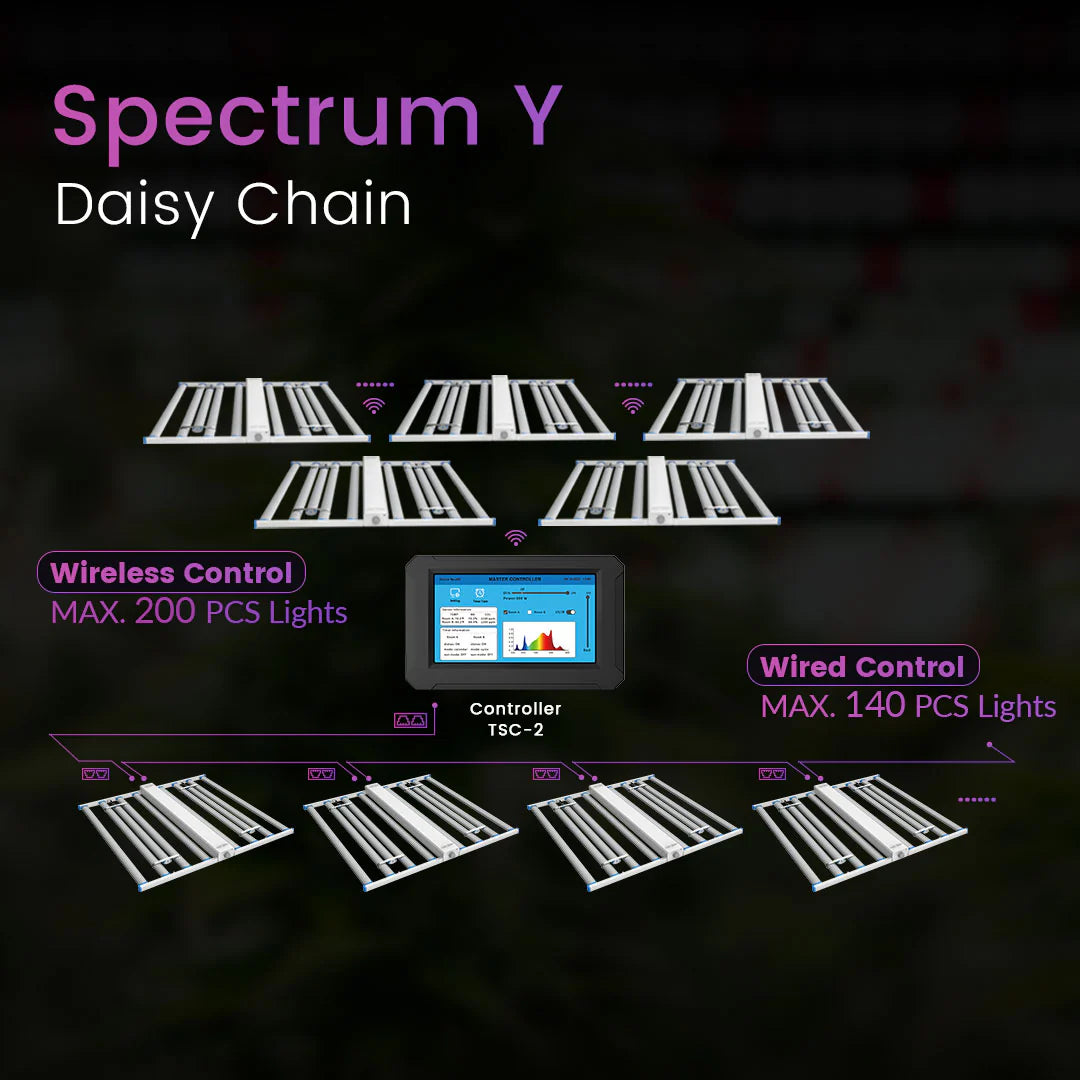

Wireless & Wired Daisy Chain

By Wireless: 200Pcs Lights
By Wired: 70Pcs Lights
By Spectrum X: 70Pcs Lights
